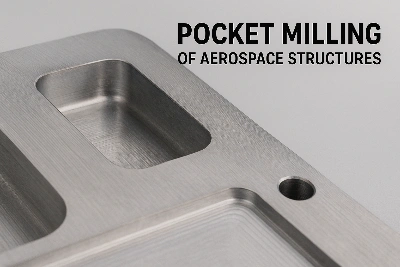

Aircraft fuselage frames and wing spars often undergo aggressive material removal via pocket milling to reduce weight. These "lightening pockets" are essential for structural efficiency-but create a hidden challenge: as internal material is removed, residual stresses are released unevenly, leading to warping or distortion of the part.
The Challenge
Pocket milling relieves built-up manufacturing and heat-treatment stress trapped in solid stock. Without careful control, this relief can cause visible geometric deviation of ribs, edges, or mounting surfaces. For high-precision structural components, even minor warpage renders parts unusable or requires costly repair.
Solution Approach
We developed a multi-pronged technique to counteract deformation risk:
Symmetrical Machining Sequences
Pocketing is performed in a mirrored, alternating pattern-e.g., milling pockets from opposing sides in succession-to balance stress relief and minimize warp tendency.
Intermediary Stress-Relief Annealing
Mid-process annealing performed at controlled temperatures (~300–400°C for aluminum alloys, or appropriate levels for titanium/alloys) relaxes residual stress before final finish cuts.
Low-Stress Cutting Parameters
Reduced radial engagement, lower feed rates, and chilled cutting fluid combine to keep cutting-induced thermal and mechanical stress to an absolute minimum.
Results Achieved
Warpage was brought down to < 0.02 mm across a 1-meter lightening panel versus > 0.1 mm initially
Final parts met flatness and assembly tolerance without rework
Cycle time impact kept under 10% thanks to optimized annealing scheduling
When large structural components need lightening through pocket milling, the process isn't just about removing material-it's about predicting and managing stress release. Through controlled symmetry, heat treatment, and gentle cutting, we ensure every pocket milled leaves the part closer to true, not further from spec.
If this matches the challenges you're facing-warp in large milled pockets, precision flatness in structural housings-drop me your job file (STEP or IGES) and I'll propose a balanced stress management strategy tailored to your material and machine.
