As a seasoned supplier in the Swiss lathe machining industry, I've witnessed firsthand the remarkable capabilities of Swiss lathes, especially those equipped with sliding headstocks. These machines are renowned for their precision, efficiency, and ability to produce complex, high - quality parts. However, like any manufacturing technology, the sliding headstock in Swiss lathe machining has its limitations. Understanding these limitations is crucial for both manufacturers and customers to make informed decisions about production processes and part design.
1. Limited Workpiece Length
One of the most significant limitations of the sliding headstock in Swiss lathe machining is the restricted length of the workpiece that can be processed. The design of the sliding headstock is such that it moves along the guide bushing, which supports the barstock as it is fed into the cutting area. This setup is ideal for producing small, intricate parts, but it poses challenges when dealing with longer workpieces.
The guide bushing, which is a key component in Swiss lathe machining, provides support close to the cutting tool, reducing vibration and improving accuracy. However, it also limits the maximum length of the workpiece that can be machined without additional support or modifications. Typically, the length of the workpiece that can be effectively machined on a Swiss lathe with a sliding headstock is limited to a few times the diameter of the barstock.
For example, if you are working with a barstock of 10 mm diameter, the maximum length of the workpiece that can be machined without significant issues might be around 30 - 50 mm. Beyond this length, the workpiece becomes more prone to deflection, especially when cutting forces are applied. This can lead to poor surface finish, dimensional inaccuracies, and even tool breakage.
2. Complexity in Setup for Large - Diameter Workpieces
While Swiss lathes with sliding headstocks are excellent for machining small - diameter parts, they face challenges when it comes to large - diameter workpieces. The setup for machining large - diameter parts on a sliding headstock Swiss lathe is often more complex and time - consuming.
The guide bushing, which is designed to support the barstock, needs to be carefully selected and adjusted for the specific diameter of the workpiece. For large - diameter barstock, finding a suitable guide bushing can be difficult, and the cost of these specialized components can be high. Additionally, the cutting forces involved in machining large - diameter parts are greater, which can put more stress on the sliding headstock and other components of the lathe.
Moreover, the chip evacuation can be a problem when machining large - diameter workpieces. The chips generated during the cutting process are larger and more difficult to remove from the cutting area, which can lead to chip jams and damage to the workpiece or the cutting tools. This requires additional attention to the chip management system and may involve more frequent tool changes and machine cleaning.
3. Limited Tooling Options
Another limitation of the sliding headstock in Swiss lathe machining is the relatively limited tooling options compared to other machining processes. The space around the sliding headstock and the cutting area is restricted, which means that only a certain number and type of cutting tools can be used simultaneously.
In a Swiss lathe with a sliding headstock, the tools are typically mounted on a turret or a tool post. The number of tool stations on these turrets or tool posts is limited, which restricts the variety of operations that can be performed without changing the tools. For example, if you need to perform multiple drilling, milling, and turning operations on a single workpiece, you may run out of tool stations on the turret.
This limitation can also affect the efficiency of the machining process. Changing tools takes time, and frequent tool changes can increase the production cycle time and reduce the overall productivity of the machine. Additionally, the limited tooling options may require more complex programming and setup to achieve the desired part geometry, which can increase the cost and complexity of the manufacturing process.
4. High Initial Investment and Operating Costs
Swiss lathes with sliding headstocks are complex and sophisticated machines, which come with a high initial investment. The cost of purchasing a Swiss lathe with a sliding headstock can be significantly higher than that of a conventional lathe or other machining equipment. This high initial cost can be a barrier for small and medium - sized manufacturers who may not have the financial resources to invest in such expensive machinery.
In addition to the high initial investment, the operating costs of Swiss lathes with sliding headstocks are also relatively high. These machines require specialized cutting tools, which can be expensive, and they also consume a significant amount of energy. The maintenance and repair of Swiss lathes are also more complex and costly compared to other types of machining equipment. The sliding headstock and other precision components need to be regularly maintained and calibrated to ensure accurate and reliable operation, which adds to the overall operating costs.
5. Difficulty in Machining Hard Materials
Machining hard materials, such as hardened steels, titanium alloys, and ceramics, can be a challenge on Swiss lathes with sliding headstocks. The cutting forces required to machine these materials are much higher than those required for softer materials, which can put more stress on the sliding headstock and the cutting tools.
The high cutting forces can cause deflection of the workpiece and the sliding headstock, leading to poor dimensional accuracy and surface finish. Additionally, the cutting tools used for machining hard materials wear out more quickly, which requires more frequent tool changes and increases the cost of production.
Moreover, the cooling and lubrication systems of Swiss lathes may not be sufficient for machining hard materials. These materials generate a large amount of heat during the cutting process, and if the heat is not effectively dissipated, it can cause thermal damage to the workpiece and the cutting tools. This requires the use of specialized cooling and lubrication systems, which can add to the complexity and cost of the machining process.
Addressing the Limitations through Complementary Processes

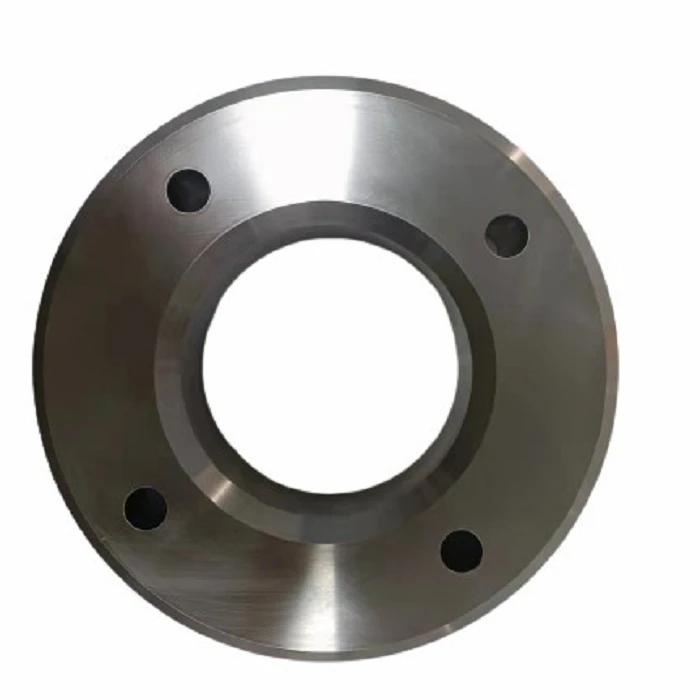

While the sliding headstock in Swiss lathe machining has its limitations, these limitations can be mitigated through the use of complementary processes. For example, CNC Depth Hole Drilling can be used for producing deep holes in workpieces that are too long or difficult to machine using a Swiss lathe alone. This process can be performed before or after the Swiss lathe machining to achieve the desired part geometry.
Precision Prototyping Production is another complementary process that can be used to test and validate part designs before full - scale production on a Swiss lathe. This allows manufacturers to identify and address any potential issues related to the limitations of the sliding headstock early in the design process, reducing the risk of costly production errors.
CNC Turning and Milling Compound Machining can also be combined with Swiss lathe machining to expand the capabilities of the manufacturing process. This process can be used to perform more complex operations, such as milling and drilling on the sides of the workpiece, which may not be possible or efficient using a Swiss lathe with a sliding headstock alone.
Conclusion
In conclusion, while the sliding headstock in Swiss lathe machining offers many advantages in terms of precision and efficiency, it also has its limitations. These limitations include restricted workpiece length, complexity in setup for large - diameter workpieces, limited tooling options, high initial investment and operating costs, and difficulty in machining hard materials. However, by understanding these limitations and using complementary processes, manufacturers can overcome these challenges and produce high - quality parts using Swiss lathes.
If you are in the market for precision Swiss lathe machining services and want to discuss how to optimize your production process while considering these limitations, I encourage you to reach out to me for a procurement discussion. We can work together to find the best solutions for your specific manufacturing needs.
